November 4, 2013. Al See, Elation, sent in these following Shaw 24 blueprints by Bill Shaw. It appears they are copies of the original blueprints for TRINA, Shaw 24 #1 which was commissioned by Wilbur Scranton. Fifty seven years ago this week Bill Shaw was working on these drawings. Click on the prints to see a full size PDF in large scale - and a fascinating look back in time.

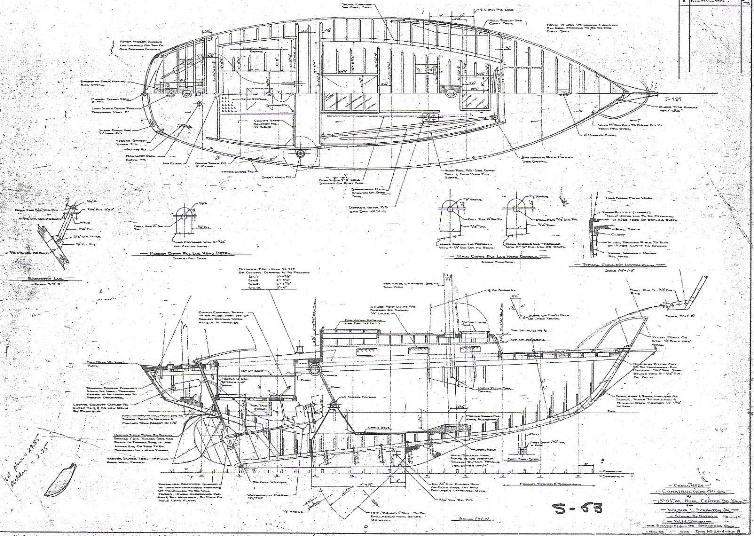

Click on picture to go to large scale size PDF - click the back arrow on your browser to get back here

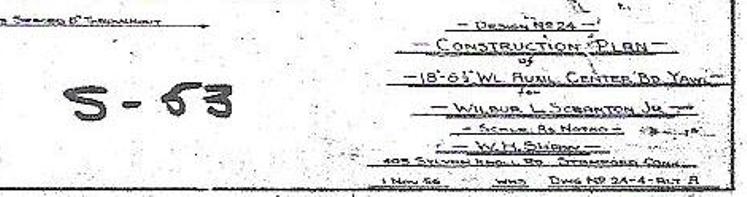

Inset on blueprint - dated 1 Nov (19)56

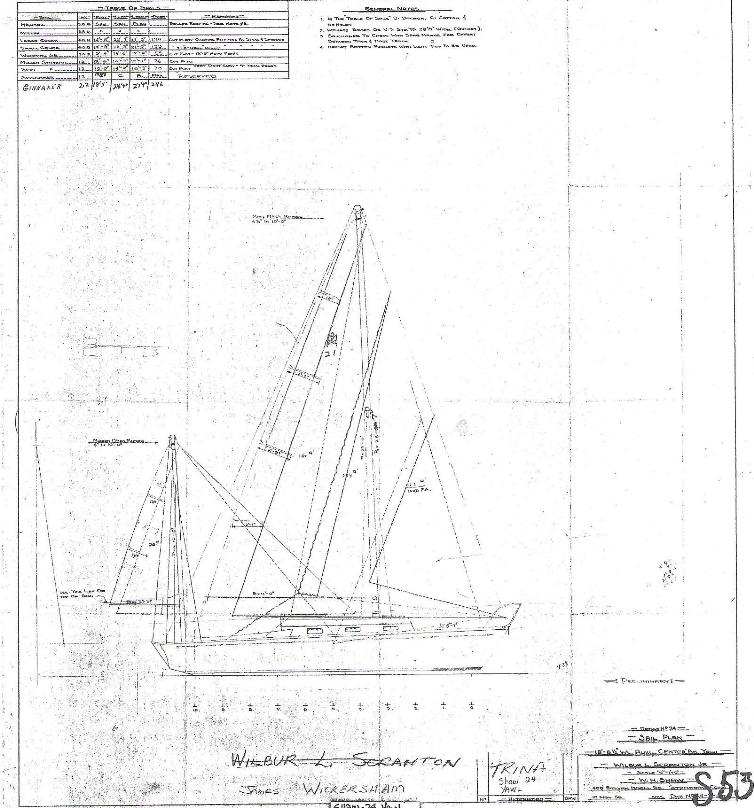

Click on picture to go to large scale and size PDF - click the back arrow on your browser to get back here

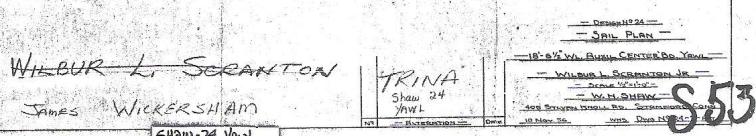

Inset on blueprint - dated 10 Nov (19)56
For more on the Shaw 24 click here to go to Trina, Hull #1
|
